Pronovost Sidewalk Series Industrial Snow Blowers
|

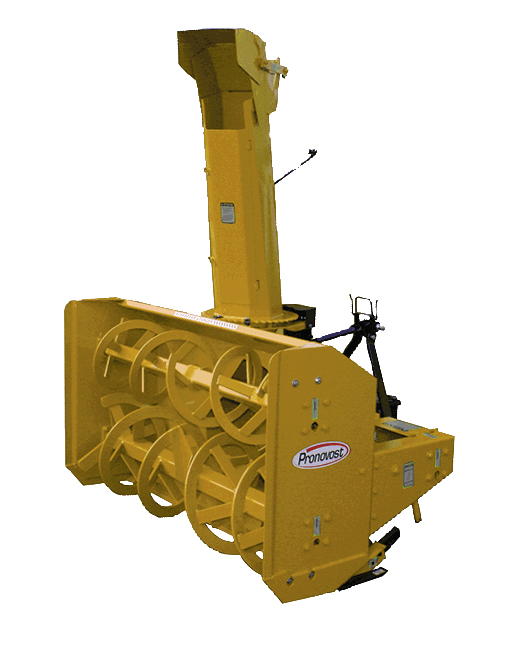

Model P-542
|

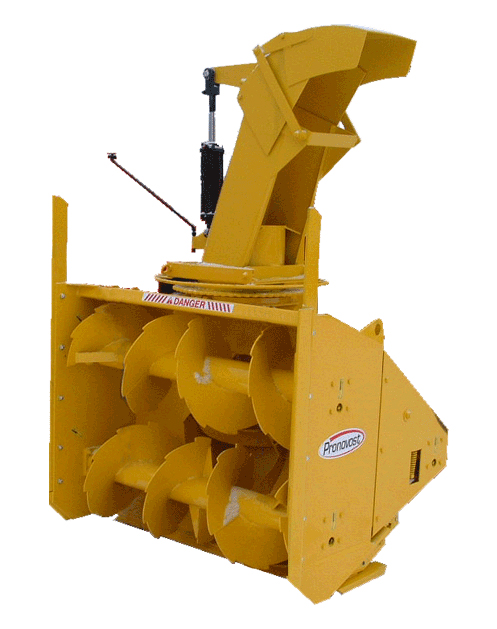

Model P-254
New Sidewalk Snowblower Developed to Meet Needs of Cities & Towns Requiring a Robust Unit That Can Get Into Tight Spots.
|
|
Model P-542 Chute Options
- Semi-Industrial Chute with Greaseable Hinges & Access Panel. (Removable)
- Extended Semi-Industrial Chute with Greaseable Hinges & Access Panel. (Removable)
Model P-542 Adjustment for Chute Deflector Options
- Manual Telescopic Tube.
- Hydraulic Cylinder.
- Hose Support for Deflector Cylinder.
- Kit of 2 Unidirectional Restrictors 3/8" NPT.
- Kit of 2 Unidirectional Restrictors 1/2" NPT.
Model P-542 Chute Rotation Options
- Hydraulic Chute Rotation Kit for Motor.
- Motor for Hydraulic Rotation Kit (Your Choice.
- For Pump with Less Than 10 GPM (with Cushion Valve)
- For Pump with Less Than 12 GPM (with Cushion Valve)
- Kit of 2 Unidirectional Restrictors.
Model P-542 Options
- TIVAR Scraper Blade, Including Mounting Kit.
- Stainless Steel Scraper Blade, Not Reversible, 1/2" x 3", Not Sharpened.
- Skid Shoes with ROCKTEC Soles.
- Skid Shoes with Stainless Steel Soles.
- Hydraulic Lateral Blades.
|
Model P-542 Chute Options
- Semi-Industrial Chute with Greaseable Hinges & Removable Access Panel.
- Quick Attach Industrial Chute with Greaseable Hinges & Removable Access Panel.
- 24" Extension for Industrial Chute.
- 48" Extension for Industrial Chute.
Model P-542 Adjustment for Chute Deflector Options
- Manual Telescopic Tube.
- Hydraulic Cylinder.
- Hose Support for Deflector Cylinder.
Model P-542 Options
- Semi-Industrial Scraper Blade, Carbon Steel, Reversible 1/2" x 4" Not Sharpened.
- Industrial Scraper Blade Carbon Steel, Not Reversible 1/2" x 6" Sharpened.
- Industrial Skid Shoes with Carbon Steel Sole.
- Power Take Off for Intensive Service.
|
| PRONOVOST SIDEWALK SERIES SNOW BLOWER SPECIFICATIONS |
| MODEL |
P-542 |
P-254 |
| Recommended Power |
30 - 55 HP |
50 - 75 HP |
| Working Width |
54" |
| Frame Height |
37" |
39-1/2" |
| Lateral Blades Cutting Height |
N/A |
51" |
| Impeller Diameter |
26" |
| Depth of Drum |
10-1/2" |
12" |
| Impeller Blade |
4 Curved Blades |
| Number of Shearbolt |
2 (Impeller & Augers) |
| Size of Impeller Shaft |
1.575" (40mm) |
| Impeller RPM |
540 RPM |
| Number of Auger |
2 Ribboned, Serrated Augers |
2 Full Flight Spiked Auger |
| Augers Diamter |
Main Auger: 18-1/2"
Upper Auger: 14-1/2" |
16" |
| Drive Chain |
No. 60 |
No. 80 |
| Scraper Blade Replaceable |
Carbon Steel (1/2" x 3") |
Steel (Reversible) (4" x 1/2") |
| Adjustable Skid Shoes |
Industrial with Carbon Steel 450 Sole PHD-4872 |
Standard Steel |
| Chute Rotation |
UHMW Slide |
| Choice of Hydraulic Motor MLH-125 or MLH-250 Including Cushion Valve |
Includes Hydraulic Motor MLH-315 & Cushion Valve |
| PTO |
Category T50 |
Category T60 |
| Bearings / Ductile Iron Flange |
Suggested Option2
1000/555-220HP (Non Inverting) |
Suggested Option2
1000/562-250HP (Non Inverting) |
| Hitch Category |
1 |
1 & 2 |
| Color |
Industrial Yellow |
| Approx. Performance |
550 Tons Imp./Hour |
650 Tons Imp./Hour |
| Approx. Weight |
1,100 lbs. |
1,400 lbs. |
Specifications & Designs Are Subject to Change Without Notice
